XUPV2P Board

Hardware Details

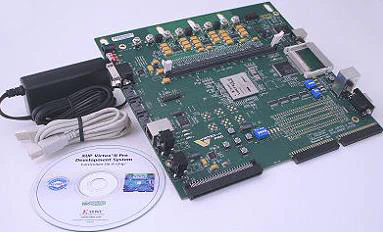

The Xilinx University Program Virtex-II Pro (XUPV2P) Development System from Digilent is a development board for the Virtex-II Pro FPGA. It contains many useful hardware features including:

• Xilinx Virtex-II Pro XC2VP30 FPGA
• 10/100Mbps Ethernet PHY
• USB port
• Compact Flash card slot
• XSGA Video port
• Audio Codec
• SATA connectors (2 hosts, 1 target)
• PS/2 and RS-232 ports
• High and Low Speed expansion connectors

Virtex-II Pro FPGA Details

The XUPV2P is loaded with a Virtex-II Pro FPGA:

Board

Virtex-II Pro Version

Package

Speed Grade

XUPV2P

XC2VP30

FF896

-7C

For more information, please refer to the Xilinx University Program Virtex-II Pro Development System Hardware Reference Manual.

How to buy it

1. The XUPV2P can be purchased through the Xilinx University Program from Digilent at only US$299. Click the Digilent link for more information.
