If you’re interested in testing out the Zynq-7000 SoC from Xilinx there are now quite a few options available, so it comes down to a question of features vs price. Below I’ve listed the most important features of the available boards side-by-side to help you make the right decision for yourself or your company. I’ll also go into what I think of each board before we look at the boards in terms of their popularity.

Low-end Zynq boards

The following are what I would consider the low-end boards for those looking at getting their hands on a Zynq with minimal investment. These are perfect for hobbyists, but can also be great for companies interested in integrating the smaller model Zynq into their products.


Entry level
  • ZC7Z010-1CLG400C
  • 512MB x32 DDR3
  • 128Mb QSPI Flash
  • MicroSD slot
  • No FMC LPC
  • No FMC HPC
  • Pmod connectors x 6
  • 1G/100M/10Mbit Ethernet
  • OTG USB 2.0 PHY
  • No PCIe
  • Dual-role HDMI 720P
  • Headphone out, mic & line
  • No analog


  • XC7Z010-1CLG400C
  • 1 GB of DDR3 SDRAM
  • 128 Mb of QSPI Flash
  • 4GB Micro SD card
  • No FMC LPC (see note 1)
  • No FMC HPC (see note 1)
  • 2×6 Pmod exposes 8 PS MIO
  • 2 connectors x 50 User I/Os
  • 10/100/1000 Ethernet
  • USB 2.0 fixed as host
  • No PCIe
  • No video
  • No audio
  • XADC thru expansion cons

Note 1: The MicroZed offers three prototype carriers – FMC, I/O and breakout

High-end Zynq boards

These are what I consider to be the high-end Zynq boards for those with extra budget who need the extra features or those who want to test the Zynq at maximum capacity. You’ll notice that I included the ZedBoard in both lists, that’s because I consider it to be versatile enough to compete with the high-end boards, yet low enough in price to compete with the low-end boards.



  • XC7Z020 CLG484 -1
  • DDR3 1GB
  • 16MB Quad SPI Flash
  • SD Card Slot
  • FMC LPC x 2
  • No FMC HPC
  • Dual & single Pmod
  • Gigabit Ethernet
  • USB OTG 1 (PS)
  • No PCIe
  • HDMI Video OUT
  • No audio
  • XADC header


No limits
  • XC7Z045 FFG900 – 2
  • 2X16MB Quad SPI Flash
  • SD Card Slot
  • Dual & Single Pmod
  • Gigabit Ethernet
  • USB OTG 1 (PS)
  • PCIe Gen2x4
  • No audio
  • AMS interface


Zynq MMP

Powerful SoM
  • XC7Z045-1FFG900 or XC7Z100-2FFG900
  • DDR3 1GB
  • 128 MB parallel Flash
  • 32MB Quad SPI Flash
  • Micro SD Card Slot
  • No FMC LPC
  • No FMC HPC
  • No Pmods
  • 10/100/1000 Ethernet
  • USB 2.0 interface
  • No PCIe
  • No video
  • No audio
  • No analog
  • 8 GTX ports

Zynq Mini-ITX

Zynq Motherboard
  • XC7Z045/XC7Z100-2FFG900
  • DDR3 1GB PS
  • DDR3 1GB PL
  • 32MB QSPI Flash
  • MicroSD Card Slot
  • No FMC LPC
  • 1xFMC HPC
  • No Pmods
  • 10/100/1000 Ethernet
  • USB 2.0 4-port HUB
  • PCIe Gen2x4 Root complex
  • HDMI
  • Audio codec
  • No analog
  • SFP & SATA3

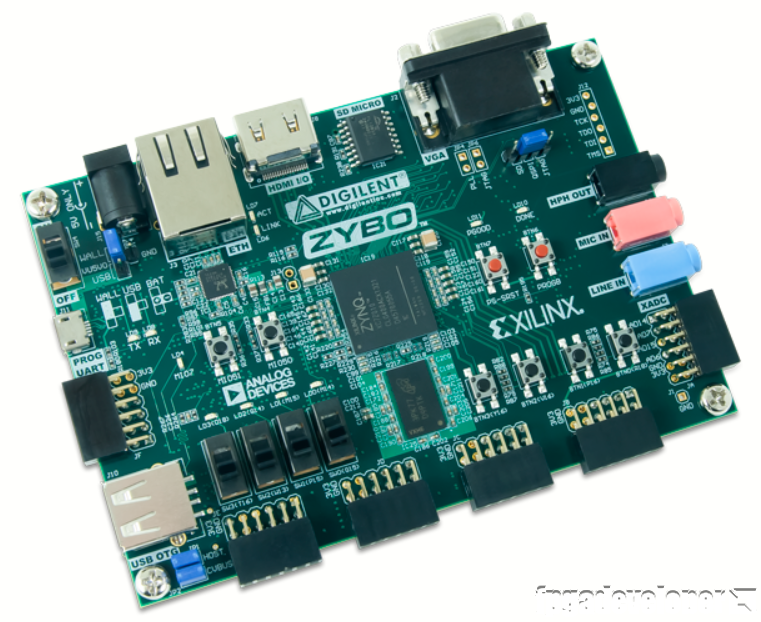

A good little entry level board with the smallest in the Zynq family.

  • Has 6 x Pmod connectors which is great if you can satisfy your I/O needs with Pmods. The other options don’t offer so many Pmod connectors on their own.
  • HDMI and audio is its advantage over the MicroZed.

Get the ZYBO if your application is video/audio and/or you want to take advantage of a few Digilent Pmod compatible devices.

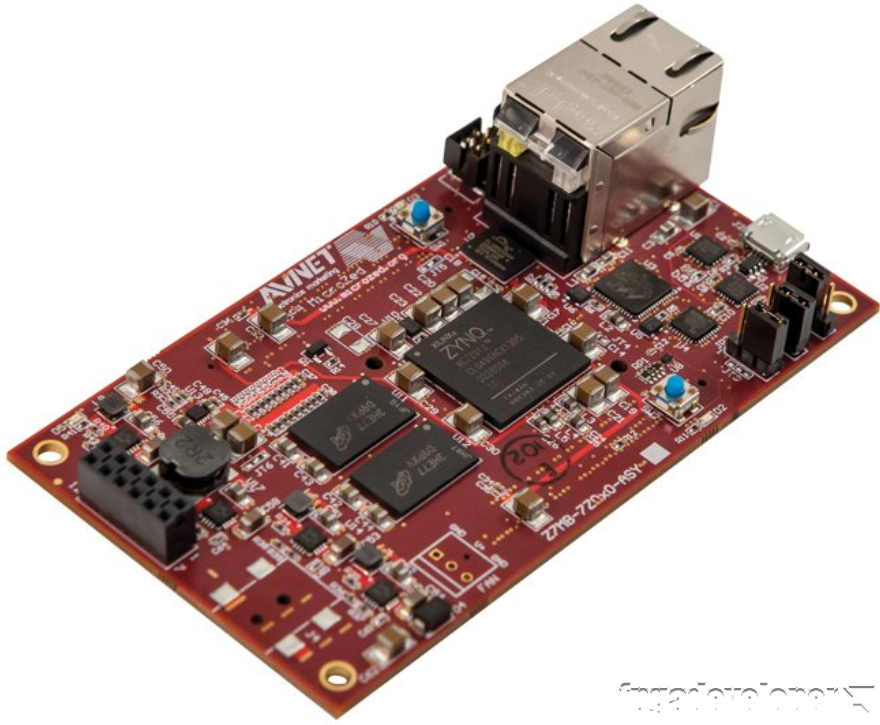

Best low-cost board. Can be purchased with an I/O carrier card to extend the I/O options.

  • More memory than the ZYBO.
  • 2 x 50 I/O board-to-board connectors provides opportunity for interfacing with custom carrier boards.
  • I/O expansion board available if you want to connect to multiple Pmod devices, add pushbuttons, DIP switches, LEDs, EEPROM, Xilinx XADC and clock oscillator.

The MicroZed, like the ZYBO, has a minimum of external hardware but the big I/O connectors make it adaptable to a huge number of applications. If the board gains popularity I can imagine that we’ll see more expansion boards for this come onto the market. I would have preferred to see the FMC connector used on this board, but apart from that I really like it and consider it the best low-cost board available. (Update: you can actually buy an FMC expansion carrier for the MicroZed).





Best value board in my opinion, with most of the features of the more expensive boards, the ZedBoard should satisfy a lot of Zynq applications.

  • Low pin count FMC connector provides the ability to plug in any of the hundreds of off-the-shelf FMC cards for custom I/O options.
  • Pmod headers for extra I/O.
  • HDMI and audio connections.

The ZedBoard sits in the middle of the range in terms of price but it has great connectivity options, well worth it in my opinion.

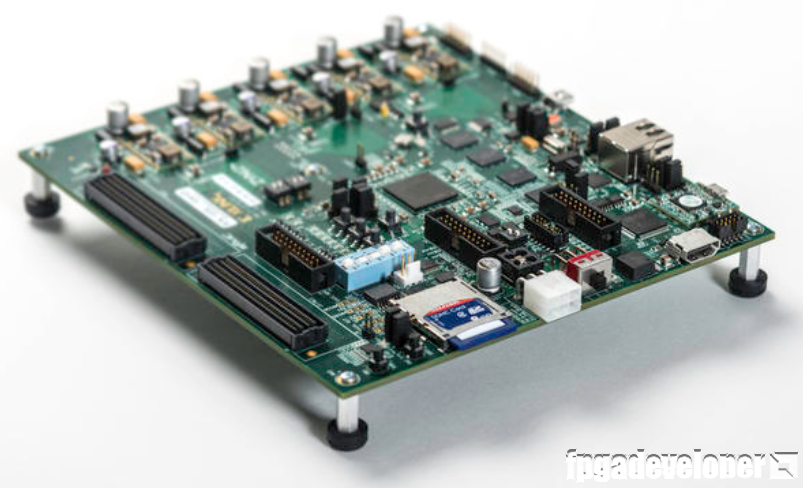

Powerful board, comparable to the ZedBoard but it has the advantage of an extra LPC FMC and the XADC header.

  • 2 x LPC FMC connectors provide more opportunities to get data in and out of the board, for example you could use an ADC on one, and a DAC on the other.
  • XADC header allows you to take advantage of the Zynq’s internal low-speed ADC.

With respect to the ZedBoard, the ZC702 allows you to double your I/O options for twice the price, sounds fair enough.




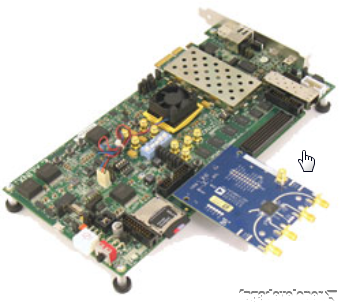

For the high-end user who doesn’t want to be held back by a lack of resources.

  • Largest in the Zynq family, lots of room to fit your design, because everyone knows that design optimization should be done at the end when the application is working.
  • High pin count and low pin count FMC connectors provide the ability to plug in any of the hundreds of off-the-shelf FMC cards for custom I/O options.
  • PCIe, great for those who need it.

The only board available with PCIe edge connector, so for some the choice will be easy. Otherwise, get this board if your application requires the highest performance, if you don’t yet know what resources your application needs and you don’t want to waste time optimizing code just to be able to fit into the device. Of course, the price is quite a big step up from the other boards, so you might be wasting your money if you don’t really need all the features. But it will make you feel good to have all that power!



Zynq MMP

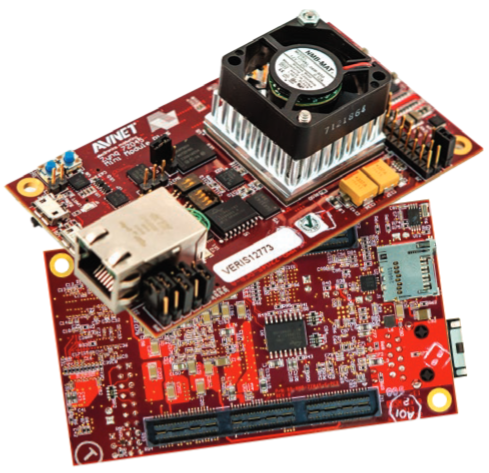

A more powerful version of the MicroZed, this system-on-module carries the largest device in the Zynq family (either XC7Z045 or XC7Z100) and is designed to be easily integrated into your custom designs. It has two high bandwidth expansion connectors on the bottom of the board for interfacing with the standard baseboard or with your own carrier design. The expansion connectors provide access to 132 user I/O pins, including 8 GTX ports which enables the carrier design to support high-speed links such as PCIe, SATA, SFP and Gigabit Ethernet. The modular design concept allows you to easily make changes and upgrades to your product without taking much risk re-spinning the boards.



Zynq Mini-ITX

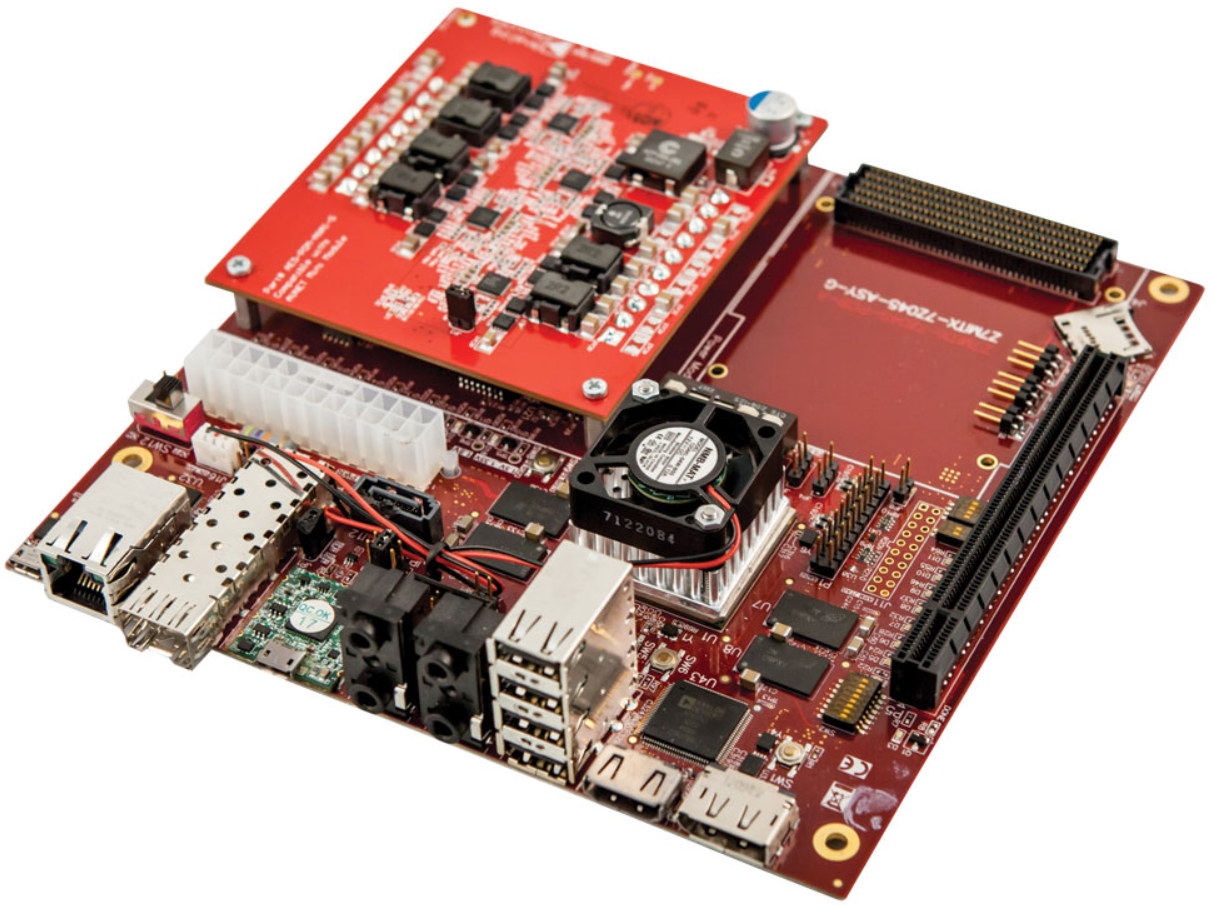

For those who want to play with the Zynq on an industry standard motherboard form-factor, here is the Zynq Mini-ITX. I can see this board replacing PC motherboards in applications that can benefit from hardware acceleration on the Zynq. All the connectivity options are covered on this board, obviously you’ve got everything you would get on a standard motherboard such as GigE, USB and PCIe but with the plus of a high-pin-count FMC. Buy the board as-is or get it with a case and hard drive, either way it comes with power supply, cables and an FMC adapter.





Popularity of the board you purchase is important because you will tend to find more support in the online community for boards that more people are using. To compare the popularity of each board, I used Google Trends to compare search patterns for each board. I also used Google Search to find the number of pages on the Xilinx forum and on the web that related to each board.

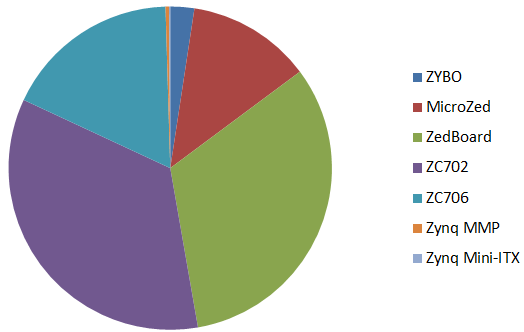

Number of pages on the Xilinx forum according to Google Search on 2014-04-30:

  • ZYBO: 139 pages
  • MicroZed: 720 pages
  • ZedBoard: 1880 pages
  • ZC702: 2010 pages
  • ZC706: 1020 pages
  • Zynq MMP: 20 pages
  • Zynq Mini-ITX: 7 pages

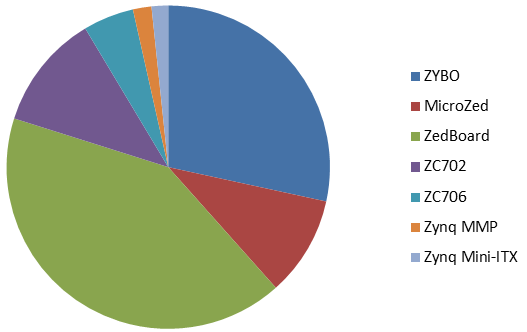

Number of pages on the web according to Google Search on 2014-04-30:

  • ZYBO: 91,800 pages
  • MicroZed: 32,300 pages
  • ZedBoard: 134,000 pages
  • ZC702: 37,300 pages
  • ZC706: 16,400 pages
  • Zynq MMP: 5,990 pages
  • Zynq Mini-ITX: 5,350 pages

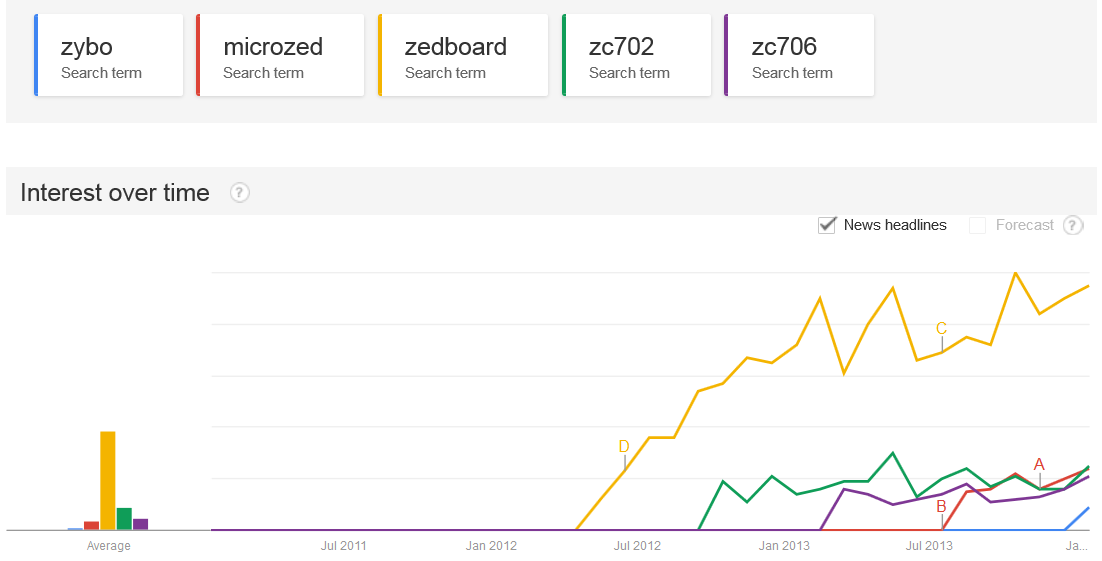

Google trends comparison:


According to Google Trends, the ZedBoard is 3-4 times as popular as the other boards. Xilinx forum activity would have you think that the ZC702 was more popular but the ZedBoard has its own deticated forum which skews the result here. The general web search showed a result that was more similar to the Google Trends result, showing that the ZedBoard is clearly the more popular board.
