This is the second part of a three part tutorial series in which we will create a PCI Express Root Complex design in Vivado with the goal of connecting a PCIe NVMe solid-state drive to our FPGA.

In this second part of the tutorial series, we will build a Zynq based design targeting the PicoZed 7Z030 and PicoZed FMC Carrier Card V2. In part 3, we will then test the design on the target hardware by running a stand-alone application which will validate the state of the PCIe link and perform enumeration of the PCIe end-points. We will then run PetaLinux on the FPGA and prepare our SSD for use under the operating system.

Requirements

To complete this tutorial you will need the following:

Note: The tutorial text and screenshots are suitable for Vivado 2015.4 however the sources in the Git repository will be regularly updated to the latest version of Vivado.

Design Overview

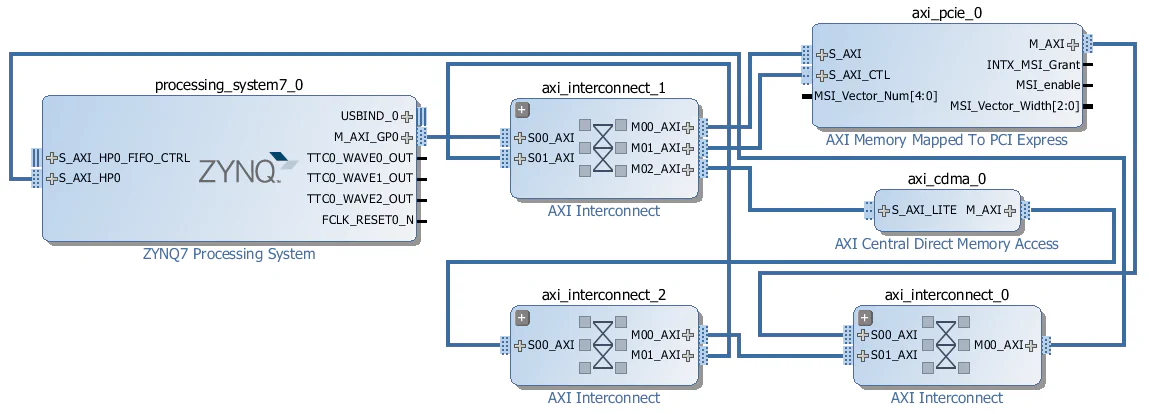

The diagram below shows the block design we are about to build with only the AXI interfaces showing. It shows three main elements: the Zynq PS, the AXI to PCIe bridge and the AXI CDMA. If you went through the previous tutorial where we created the same design for a Microblaze system, you may be wondering why the Zynq design seems so much simpler. The reason is that a lot of the elements required in this design are hidden in the Zynq PS block, including the DDR3 memory controller, UART, Ethernet, Interrupt controller, Timer and QSPI.

zynq_pcie_root_port_design_vivado_48

So again let’s look at who the bus masters are and what address spaces they can access:

  • the Zynq PS can access both the DDR3 memory and the PCIe address space
  • the PCIe end-point with bus mastering capability can access the DDR3 memory only (via M_AXI port of the AXI-PCIe bridge)
  • the CDMA can access both the DDR3 memory and the PCIe address space



Install PicoZed board definition files

The first thing we have to do is provide the PicoZed board definition files to our Vivado installation so that the PicoZed will show up in the list of targets when we create a new project. The board definition files contain information about the hardware on the target board and also on how the Zynq PS should be configured in order to properly connect to that hardware.

  1. Download the PicoZed board definition files for Vivado 2015.4 from the PicoZed documentation page.
  2. From inside the ZIP file, copy the folder picozed_7030_fmc2 into the folder C:\Xilinx\Vivado\2015.4\data\boards\board_files of your Vivado installation.

Create a new Vivado project

Let’s kick off the design by creating a new project in Vivado and selecting the PicoZed 7Z030 as our target.

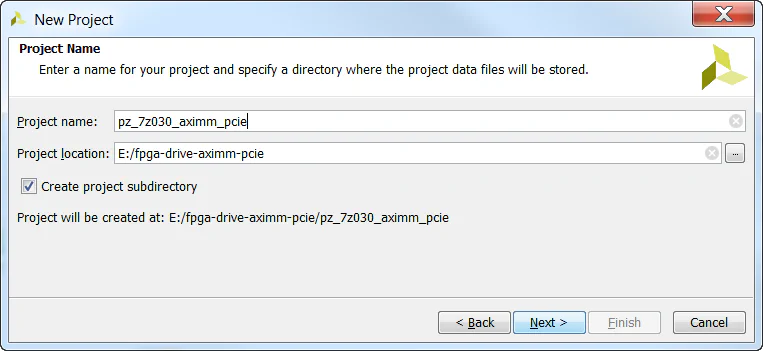

  1. From the welcome screen, click “Create New Project”. Specify a folder for the project. I’ve created a folder named “kc705_aximm_pcie”. Click “Next”.zynq_pcie_root_port_design_vivado_1

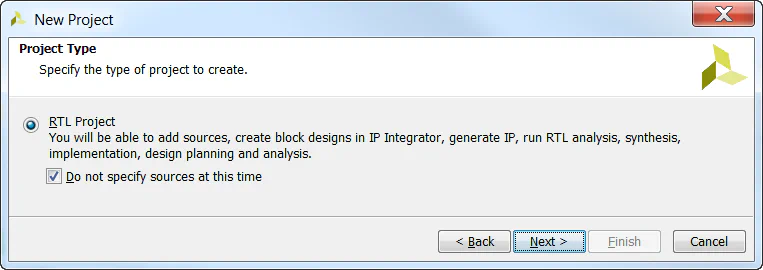

  2. For the Project Type window, choose “RTL Project” and tick “Do not specify sources at this time”. Click “Next”.zynq_pcie_root_port_design_vivado_2

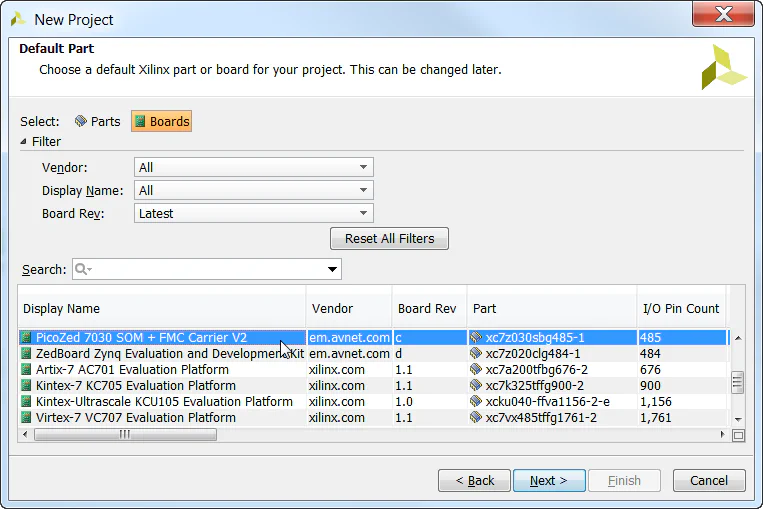

  3. For the Default Part window, select the “Boards” tab and then select the “PicoZed 7030 SOM + FMC Carrier V2” and click “Next”.zynq_pcie_root_port_design_vivado_3
  4. Click “Finish” to complete the new project wizard.



Create the block design

In the following steps, we’ll create the block design then add the Zynq PS and the AXI Memory Mapped PCI Express Bridge.

  1. From the Vivado Flow Navigator, click “Create Block Design”.
  2. Specify a name for the block design. Let’s go with the default “design_1” and leave it local to the project. Click “OK”.

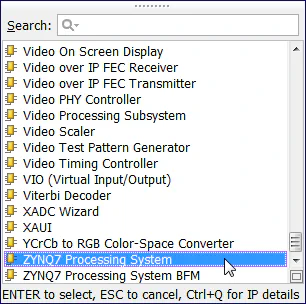

  3. Once the empty block design opens, click on the “Add IP” icon. The IP catalog will appear. Find and double click on “ZYNQ7 Processing System”.zynq_pcie_root_port_design_vivado_4

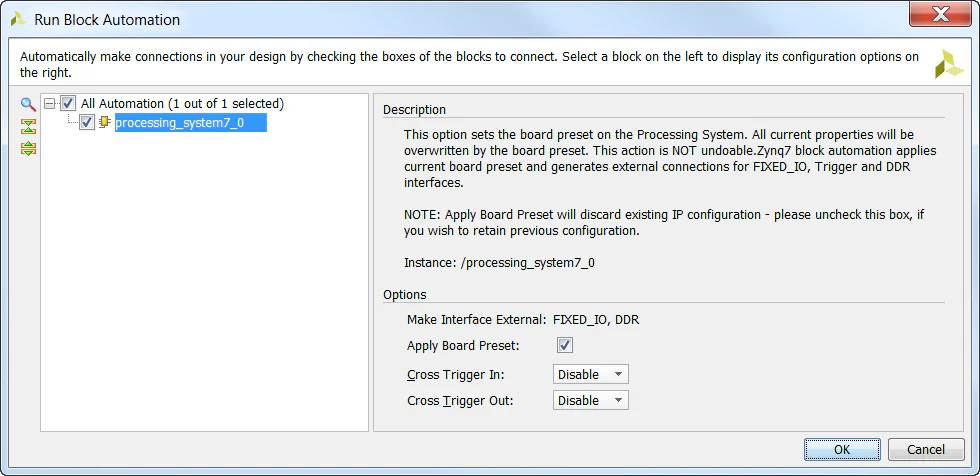

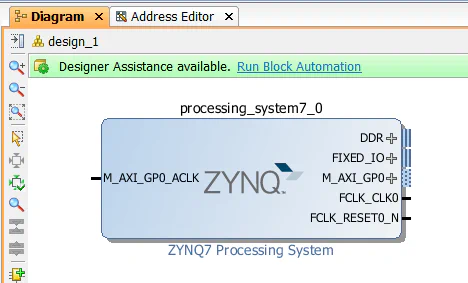

  4. The Zynq PS block will be added to the block design. Click Run Block Automation to configure the Zynq PS for our target hardware.zynq_pcie_root_port_design_vivado_5
  5. Use the default block automation settings.zynq_pcie_root_port_design_vivado_6
  6. Now double click on the Zynq PS to configure it.

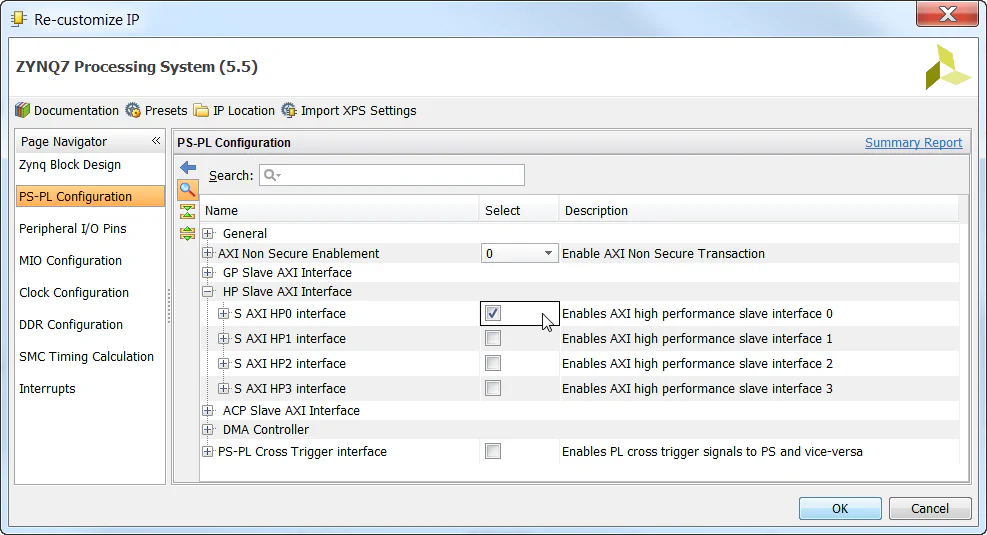

  7. In the PS-PL Configuration tab, enable HP Slave AXI interface (S AXI HP0 interface). HP stands for high-performance and this port allows an AXI master to access the DDR3 memory.zynq_pcie_root_port_design_vivado_7

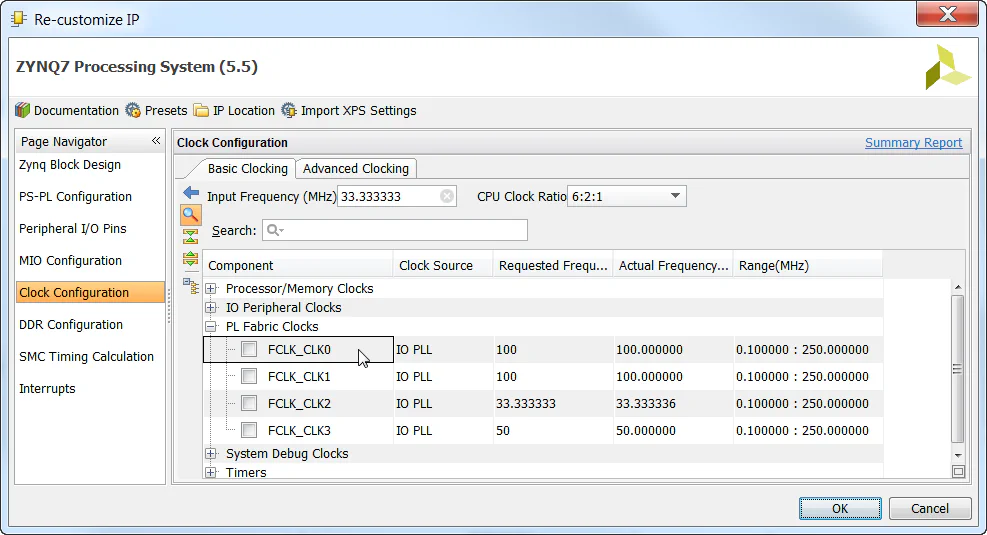

  8. In the Clock Configuration tab, disable the PL Fabric Clock FCLK_CLK0, because we won’t be needing it. Instead, most of our design will be driven by the clock supplied by the AXI-PCIe bridge, which is derived from the 100MHz PCIe reference clock.zynq_pcie_root_port_design_vivado_8

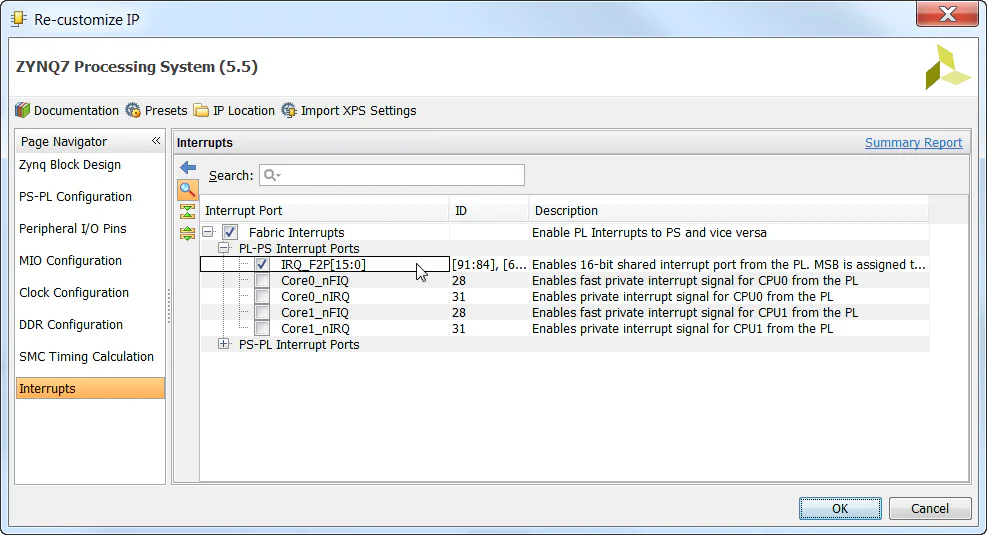

  9. In the Interrupts tab, enable Fabric Interrupts, IRQ_F2P. This allows us to connect interrupts from our PL (programmable logic) to the Zynq PS.zynq_pcie_root_port_design_vivado_9

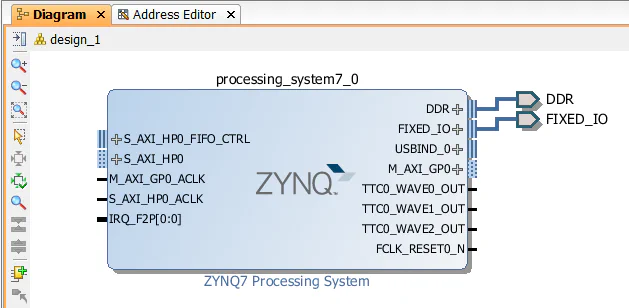

  10. The Zynq block should look like in the image below.zynq_pcie_root_port_design_vivado_10



Add the AXI MM to PCIe bridge

  1. From the IP Catalog, add the “AXI Memory Mapped to PCI Express” block to the design.
  2. When the AXI-PCIe block is in the block design, double click on it to configure it.

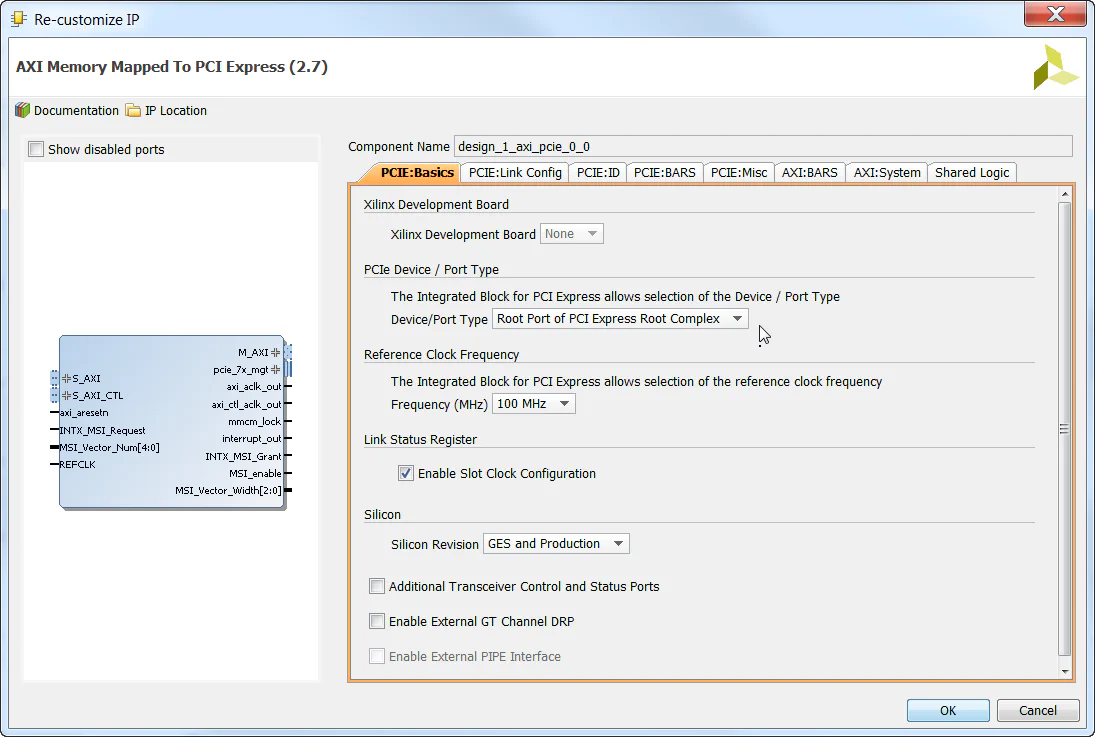

  3. On the “PCIE:Basics” tab of the configuration, select “Root Port of PCI Express Root Complex” as the port type.zynq_pcie_root_port_design_vivado_11

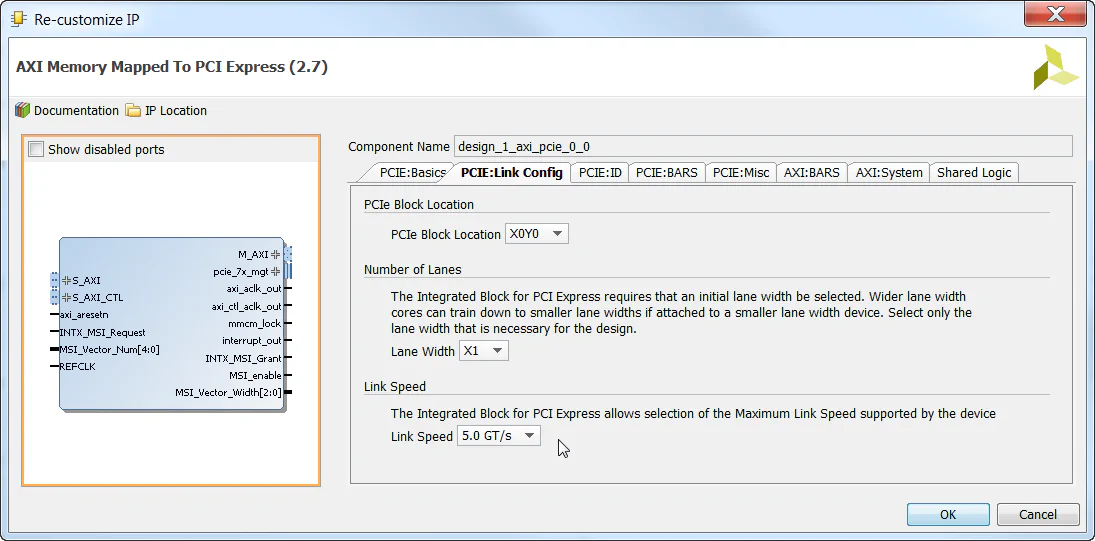

  4. On the “PCIE:Link Config” tab, select a “Lane Width” of 1x and a “Link speed” of 5 GT/s (Gen2). We plan to connect to a 4-lane NVMe PCIe SSD in the next part of this tutorial, but the target hardware only has a single-lane PCIe edge connector.zynq_pcie_root_port_design_vivado_12

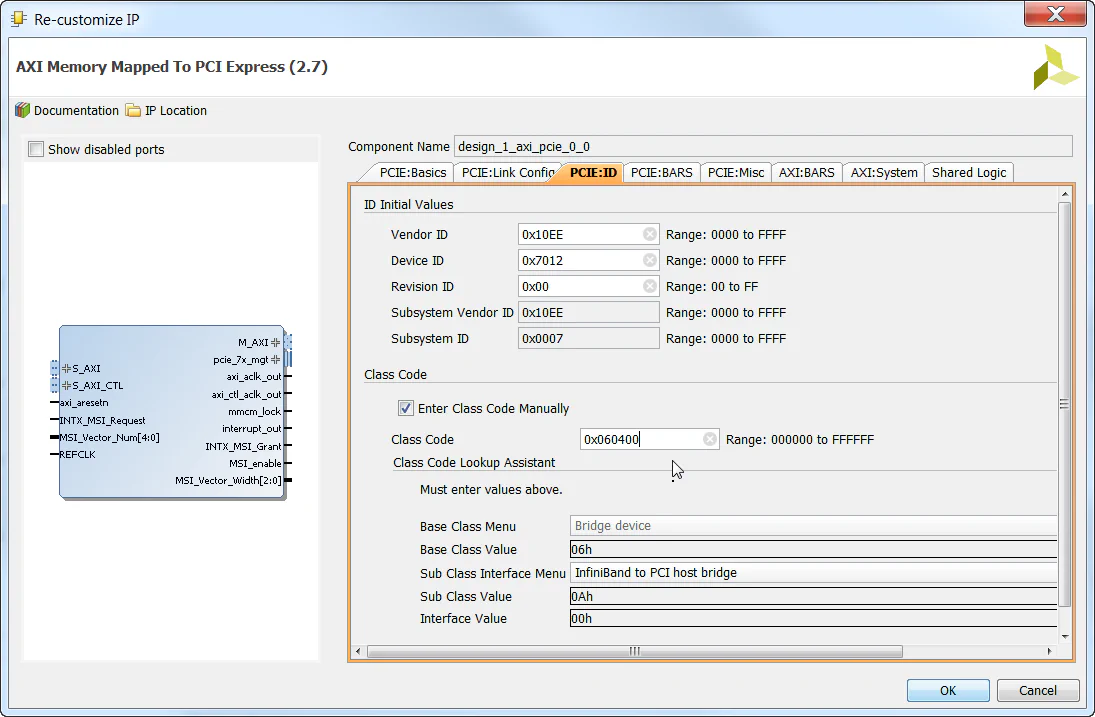

  5. In the “PCIE:ID” tab, enter a “Class Code” of 0x060400. This is important for the next tutorial, in which we will be running PetaLinux. The class code will ensure that the correct driver is associated with the AXI to PCIe bridge IP.zynq_pcie_root_port_design_vivado_13

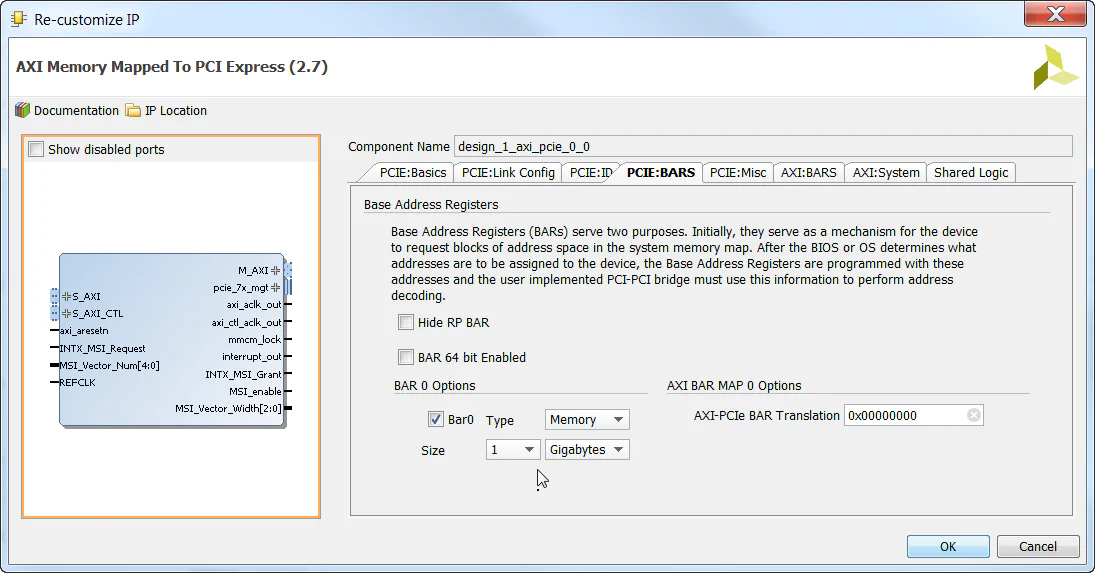

  6. In the “PCIE:BARS” tab, set BAR 0 with type “Memory” and a size of 1 Gigabytes.zynq_pcie_root_port_design_vivado_14

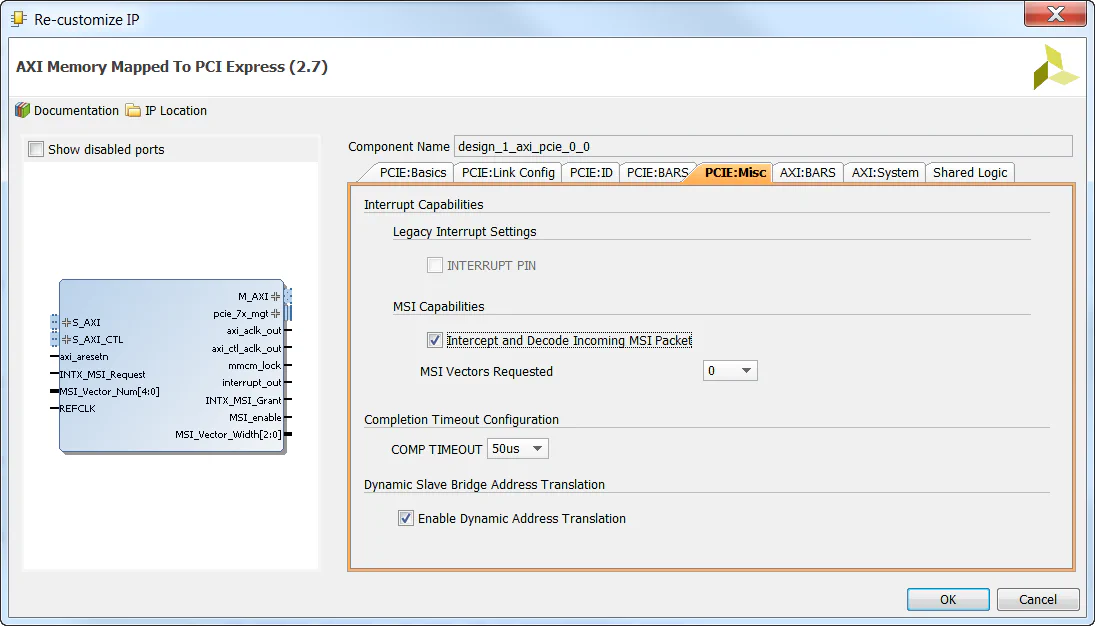

  7. In the “PCIE:Misc” tab, use the defaults as shown in the image below.zynq_pcie_root_port_design_vivado_15

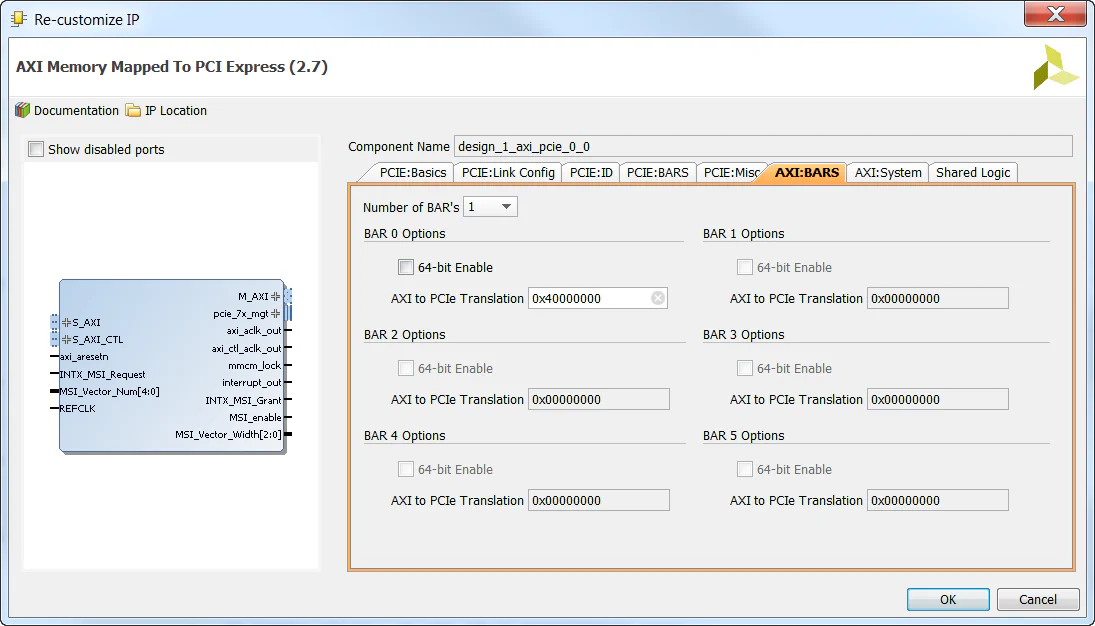

  8. In the “AXI:BARS” tab, use the defaults as shown in the image below. We will later be able to configure the size of the AXI BAR 0 in the Address Editor.zynq_pcie_root_port_design_vivado_16

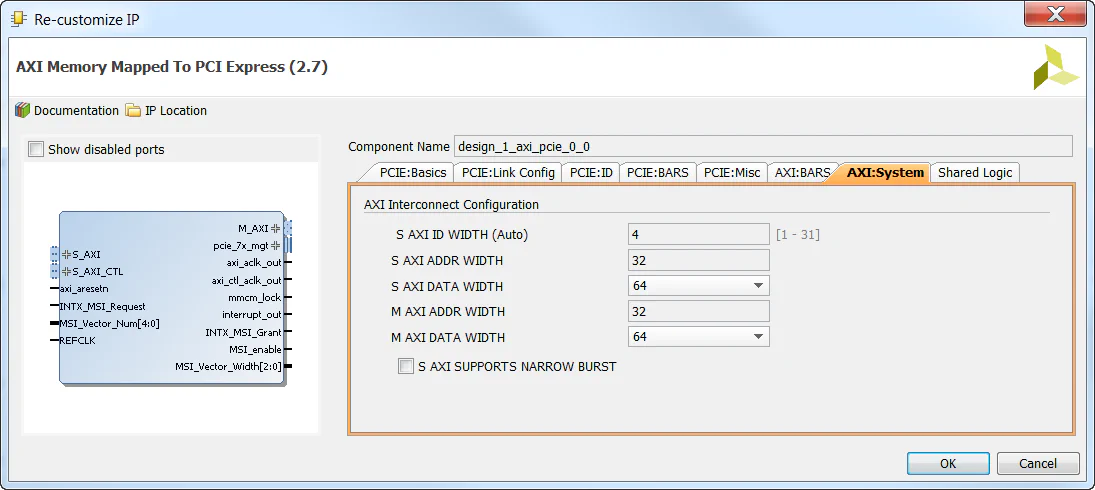

  9. In the “AXI:System” tab, use the defaults as shown in the image below.zynq_pcie_root_port_design_vivado_17

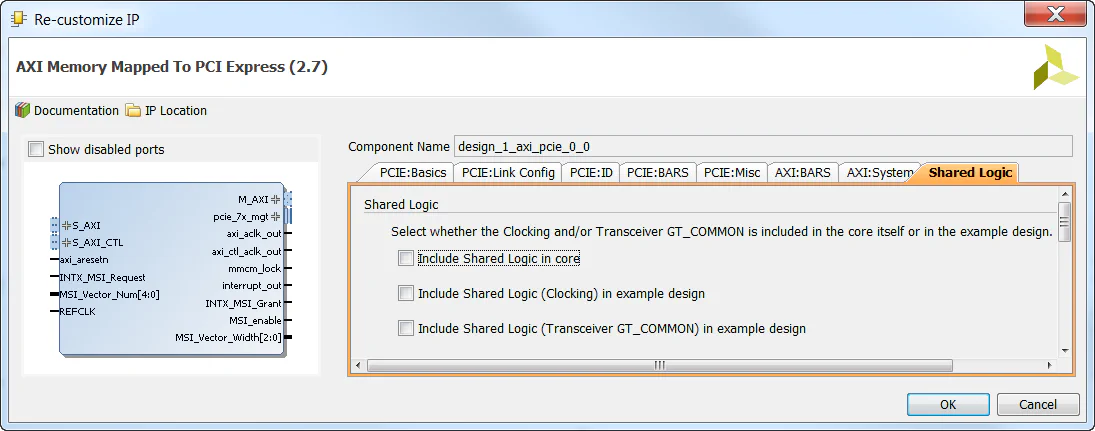

  10. In the “Shared Logic” tab, use the defaults as shown in the image below. Click “OK”.zynq_pcie_root_port_design_vivado_18

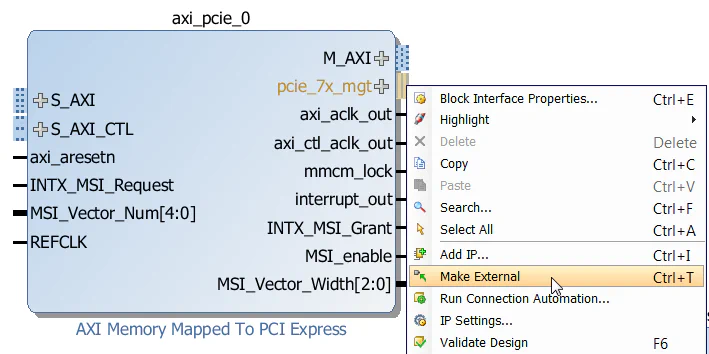

  11. Right click on the “pcie_7x_mgt” port of the AXI-PCIe block and select “Make External”. This will connect the gigabit transceiver to the 1-lane PCIe edge-connector of the PicoZed 7030 SOM + FMC Carrier V2.zynq_pcie_root_port_design_vivado_19

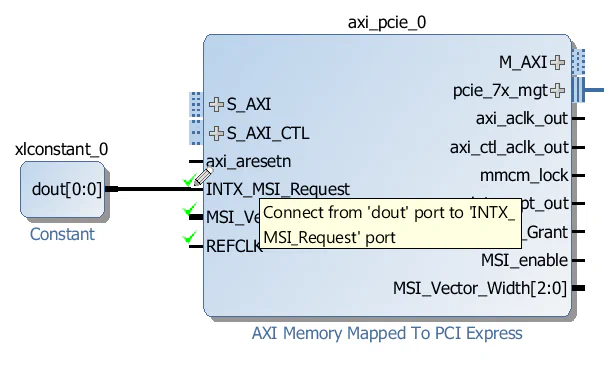

  12. Add a “Constant” from the IP Catalog and configure it to output 0 (low). We’ll use this to tie low the “INTX_MSI_Request” input of the AXI-PCIe block. Connect the constant’s output to the “INTX_MSI_Request” input of the AXI-PCIe block.zynq_pcie_root_port_design_vivado_22_a

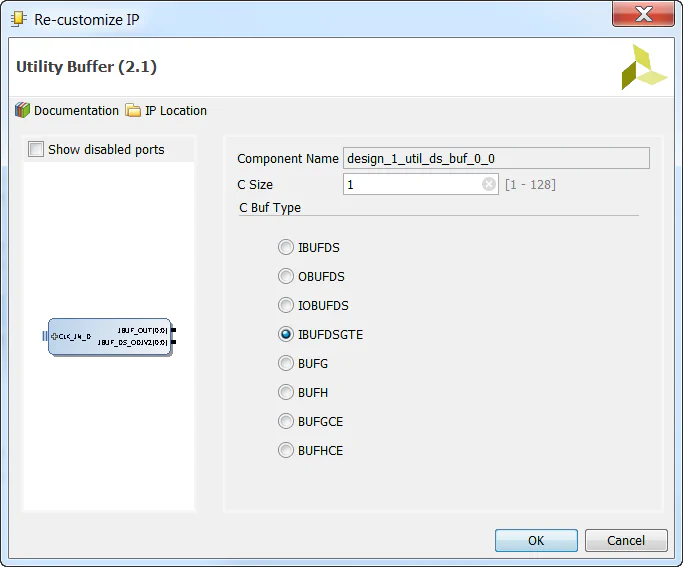

  13. Add a “Utility Buffer” to the block design. This buffer is going to be connected to a 100MHz clock that will be provided to the PicoZed 7030 SOM + FMC Carrier V2 by the FPGA Drive adapter, via the PCIe edge-connector. A 100MHz reference clock is required by all PCIe devices. Double click on the utility buffer and on the “Page 0” tab of the configuration window, select “IBUFDSGTE” as the C Buf Type. Click “OK”.zynq_pcie_root_port_design_vivado_23

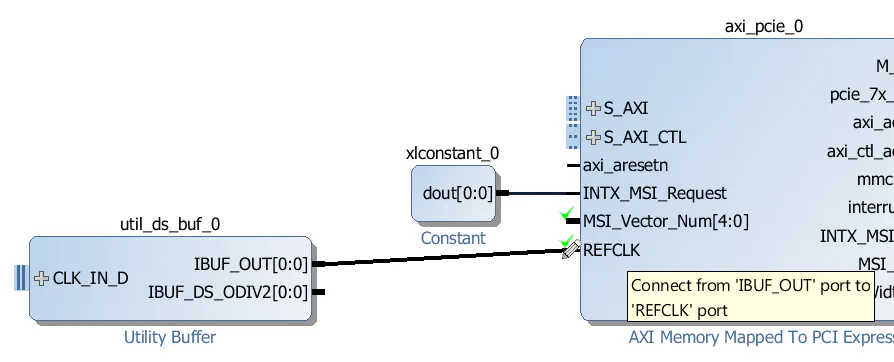

  14. Connect the “IBUF_OUT” output of the utility buffer to the “REFCLK” input of the AXI-PCIe block.zynq_pcie_root_port_design_vivado_24_a

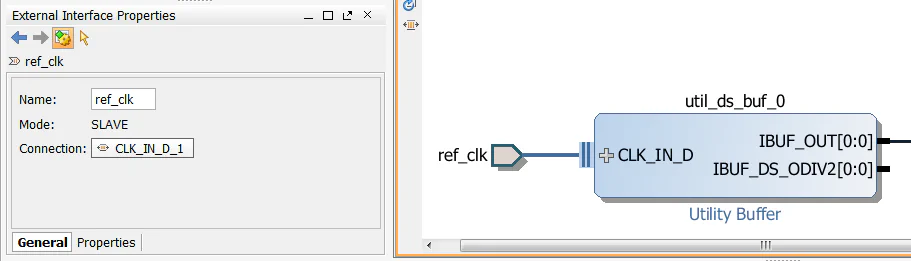

  15. Right click on the “CLK_IN_D” input of the utility buffer and select “Make External”, then change the name of the created external port to “ref_clk” using the External Interface Properties window.zynq_pcie_root_port_design_vivado_25_a



Add the Processor System Resets

Our design will be using the two clocks supplied by the AXI-PCIe bridge: “axi_aclk_out” and “axi_ctl_aclk_out”. We will need to add a Processor System Reset to generate resets for each of those clocks.

  1. From the IP Catalog, add a “Processor System Reset” to the design – this one should automatically be called “proc_sys_reset_0”.

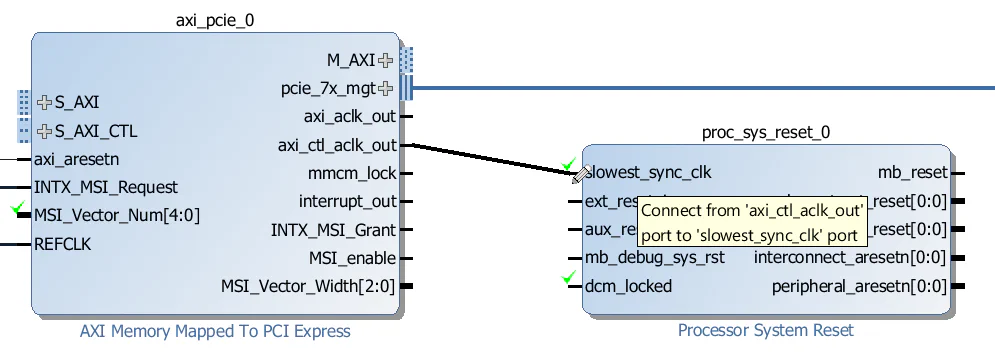

  2. Connect the “axi_ctl_aclk_out” output of the AXI-PCIe block to the “slowest_sync_clk” input of the “proc_sys_reset_0” Processor System Reset.zynq_pcie_root_port_design_vivado_26

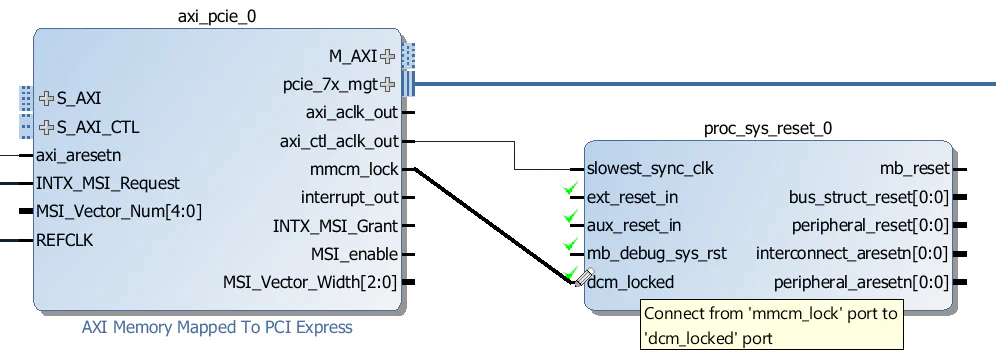

  3. Connect the “mmcm_lock” output of the AXI-PCIe block to the “dcm_locked” input of the “proc_sys_reset_0” Processor System Reset.zynq_pcie_root_port_design_vivado_27

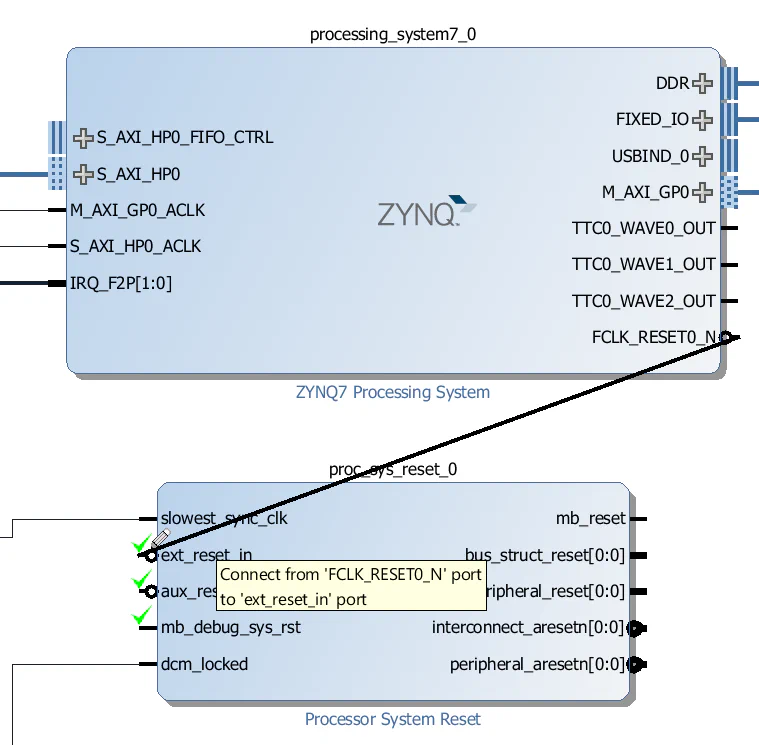

  4. Connect the “FCLK_RESET0_N” output of the Zynq PS to the “ext_reset_in” input of the “proc_sys_reset_0” Processor System Reset.zynq_pcie_root_port_design_vivado_100

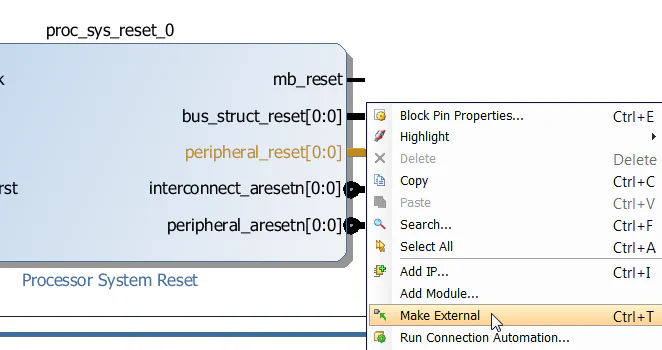

  5. Right click on the “peripheral_reset” output of the “proc_sys_reset_0” Processor System Reset and click “Make External”. This will be the signal that drives the PCIe reset (PERST) input of the SSD.zynq_pcie_root_port_design_vivado_101

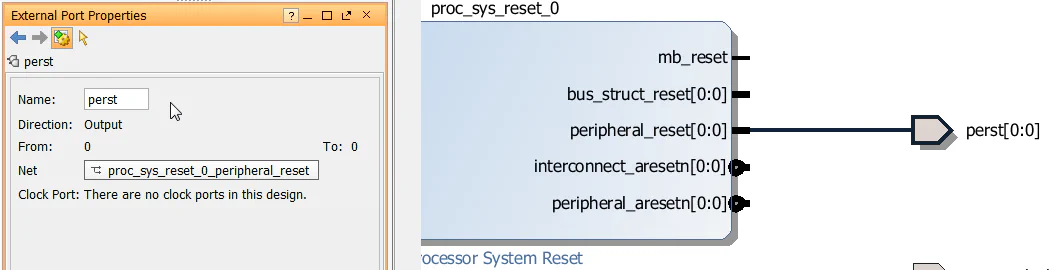

  6. Click on the port we just created and rename it to “perst”.zynq_pcie_root_port_design_vivado_102

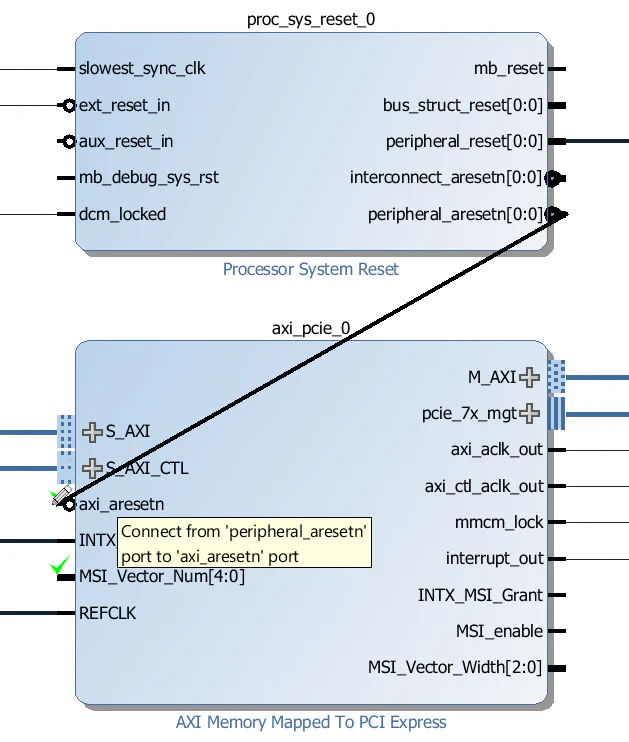

  7. Connect the “peripheral_aresetn” output of “proc_sys_reset_0” to the “axi_aresetn” input of the “axi_pcie_0” block.zynq_pcie_root_port_design_vivado_103
  8. From the IP Catalog, add another “Processor System Reset” to the design – this one should automatically be called “proc_sys_reset_1”.

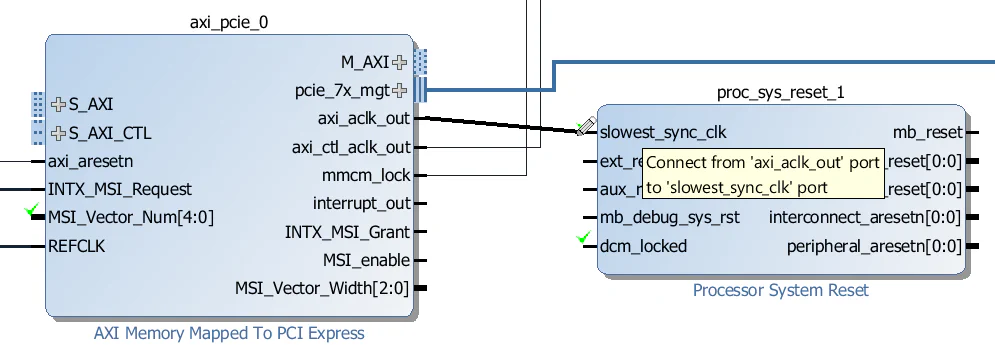

  9. Connect the “axi_aclk_out” output of the AXI-PCIe block to the “slowest_sync_clk” input of the “proc_sys_reset_1” Processor System Reset.zynq_pcie_root_port_design_vivado_29

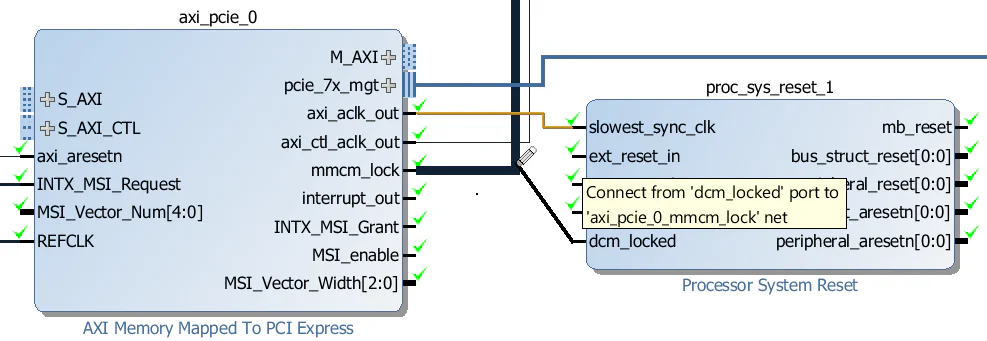

  10. Connect the “mmcm_lock” output of the AXI-PCIe block to the “dcm_locked” input of the “proc_sys_reset_1” Processor System Reset.zynq_pcie_root_port_design_vivado_30

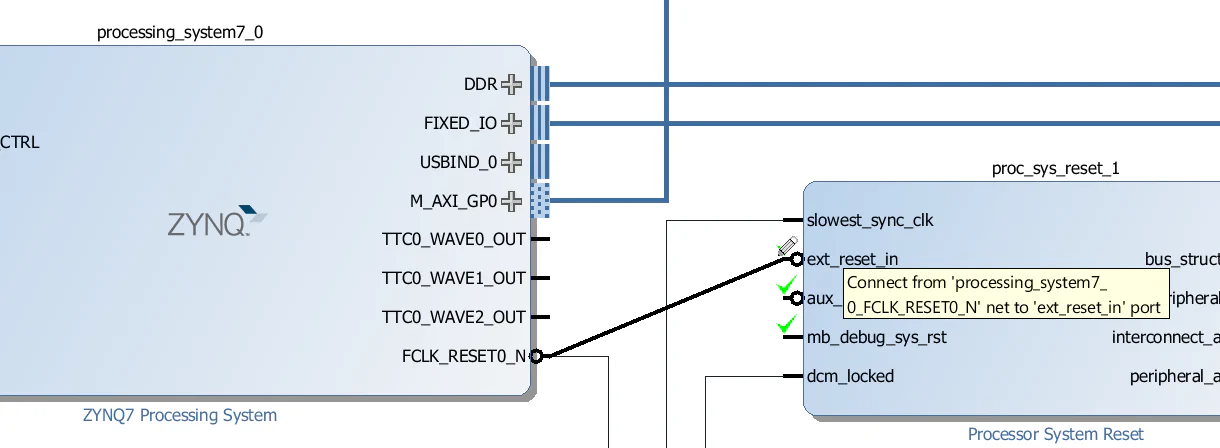

  11. Connect the “FCLK_RESET0_N” output of the Zynq PS to the “ext_reset_in” input of the “proc_sys_reset_1” Processor System Reset.zynq_pcie_root_port_design_vivado_104



Add the CDMA

We’re going to add a Central DMA to this design to allow us to make DMA transfers between the PCIe end-point and the DDR3 memory. We won’t actually test it, that will be the subject of another tutorial, but most PCIe designs can benefit from having a Central DMA because it allows for higher throughput over the PCIe link using burst transfers.

  1. Add an “AXI Central Direct Memory Access” from the IP Catalog to the block design.

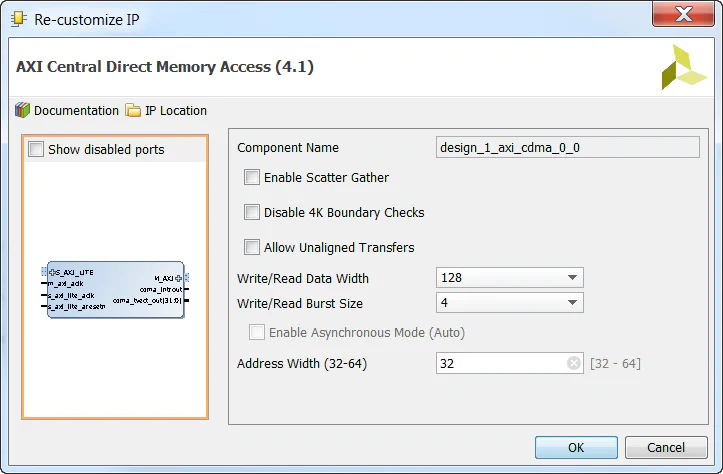

  2. Double click on the CDMA block to open the configuration window. Disable Scatter Gather and set “Write/Read Data Width” to 128 as shown in the image below.zynq_pcie_root_port_design_vivado_32



Add the Interrupt Concat

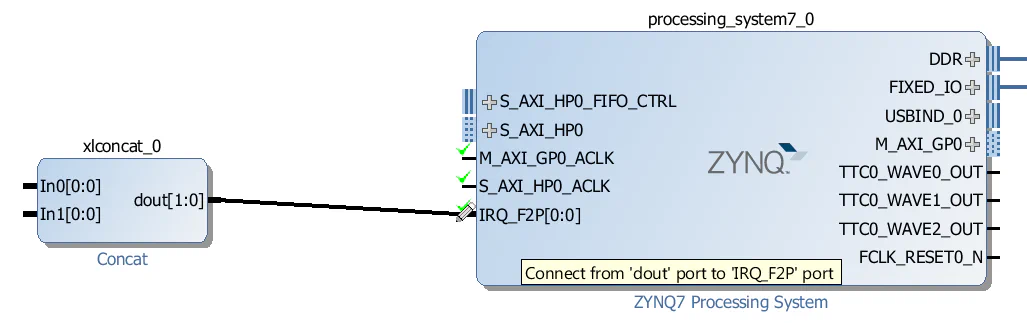

To connect interrupts to the IRQ_F2P port of the Zynq PS, we need to use a Concat.

  1. From the IP Catalog, add a “Concat” to the block design.
  2. By default, it should have two inputs – that’s perfect for us, as we only have 2 interrupts to connect. Connect the output of the Concat to the “IRQ_F2P” port of the Zynq PS.zynq_pcie_root_port_design_vivado_33
  3. Connect the “interrupt_out” output of the AXI-PCIe block to the “In0” input of the Concat.

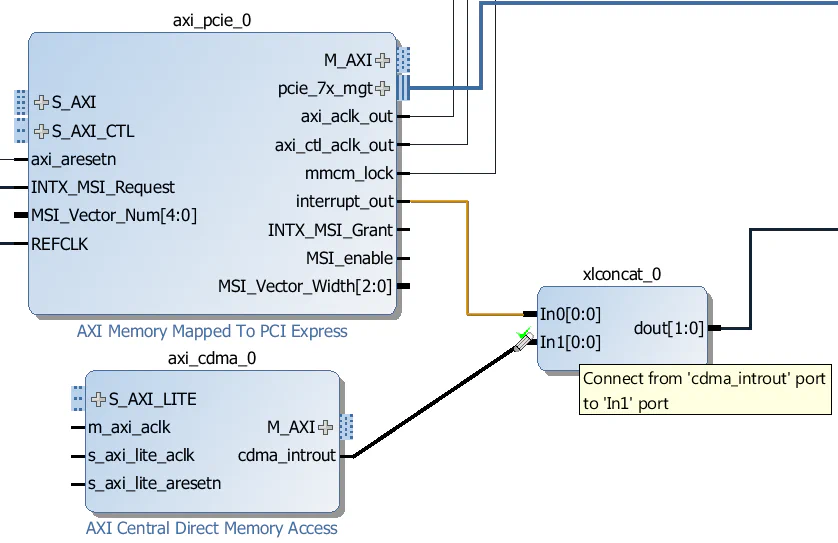

  4. Connect the “cdma_introut” output of the CDMA block to the “In1” input of the Concat.zynq_pcie_root_port_design_vivado_34

Add the AXI Interconnects

Now the last thing to do is add the AXI Interconnects and wire up all the AXI interfaces.

axi_interconnect_0:

  1. From the IP Catalog, add an “AXI Interconnect” to the block design – this one should be automatically named “axi_interconnect_0”. We’ll use this to create two ports for accessing the DDR3 memory.
  2. Re-configure it to have 2 slave ports and 1 master port.

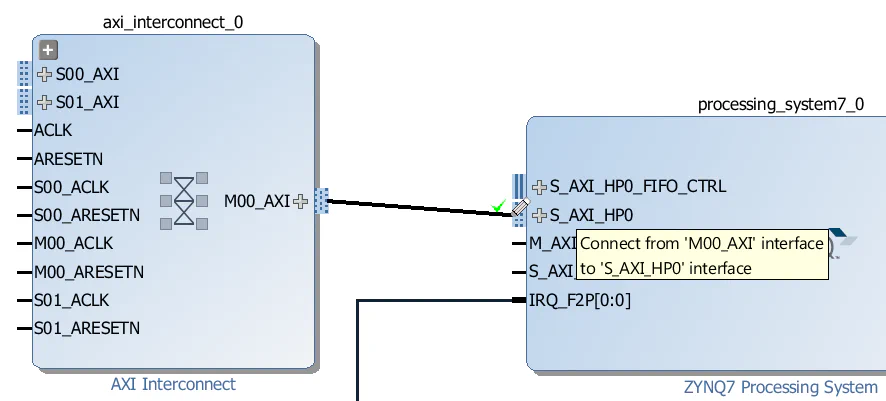

  3. Connect the “M00_AXI” port of the “axi_interconnect_0” to the “S_AXI_HP0” port of the Zynq PS.zynq_pcie_root_port_design_vivado_35

axi_interconnect_1:

  1. From the IP Catalog, add another “AXI Interconnect” to the block design – this one should be automatically named “axi_interconnect_1”. We’ll use this to create two ports for accessing the AXI-PCIe control interface, the PCIe end-point and the CDMA control interface.
  2. Re-configure it to have 2 slave ports and 3 master ports.
  3. Connect the “M00_AXI” port of the “axi_interconnect_1” to the “S_AXI” port of the AXI-PCIe block.
  4. Connect the “M01_AXI” port of the “axi_interconnect_1” to the “S_AXI_CTL” port of the AXI-PCIe block.

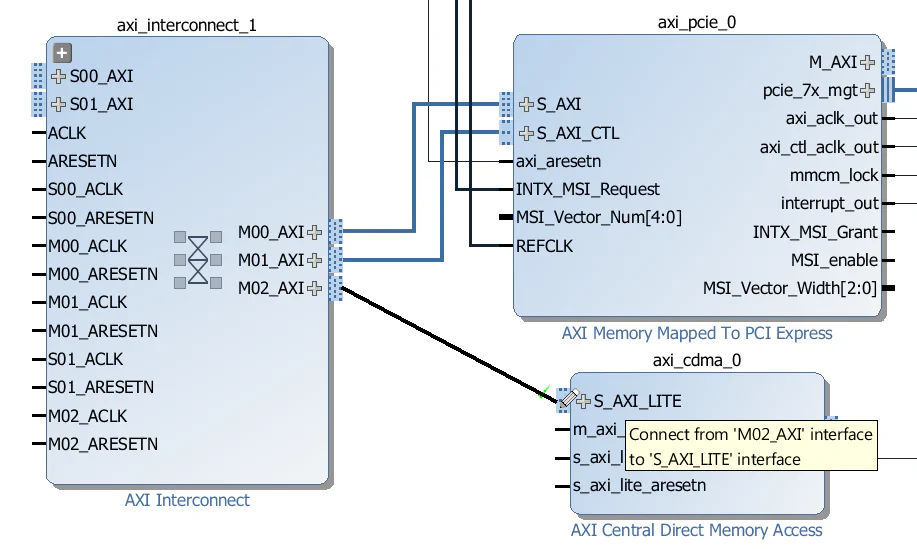

  5. Connect the “M02_AXI” port of the “axi_interconnect_1” to the “S_AXI_LITE” port of the CDMA block.zynq_pcie_root_port_design_vivado_36

axi_interconnect_2:

  1. From the IP Catalog, add another “AXI Interconnect” to the block design – this one should be automatically named “axi_interconnect_2”. We’ll use this to allow the CDMA to access both the DDR3 memory and the PCIe end-point.
  2. By default, it should already have 1 slave port and 2 master ports, which is exactly what we need.
  3. Connect the “M00_AXI” port of the “axi_interconnect_2” to the “S01_AXI” port of the “axi_interconnect_0” (the first interconnect we created).

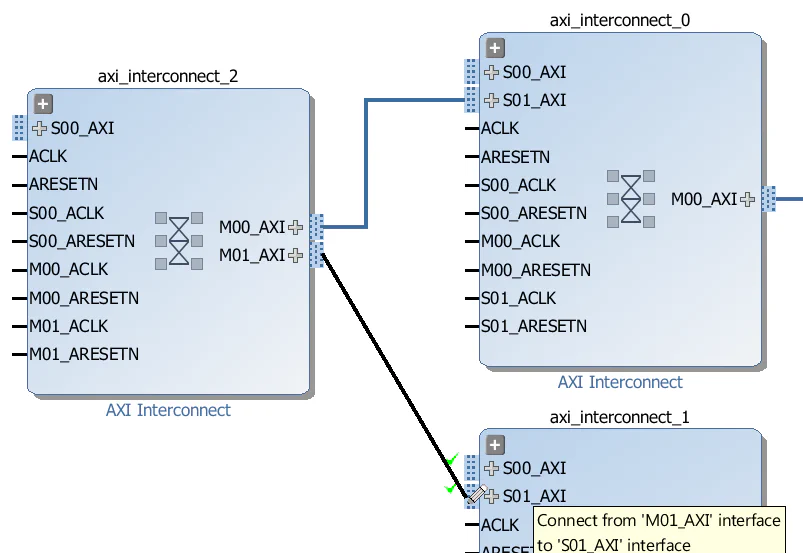

  4. Connect the “M01_AXI” port of the “axi_interconnect_2” to the “S01_AXI” port of the “axi_interconnect_1” (the second interconnect we created).zynq_pcie_root_port_design_vivado_37

Now for the rest of the connections:

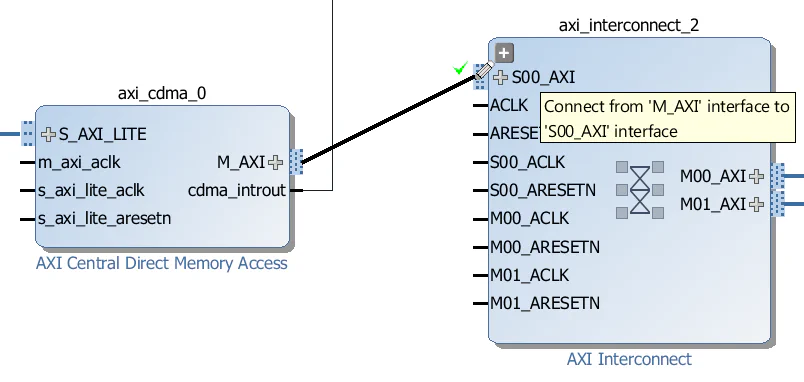

  1. Connect the “M_AXI” port of the CDMA block to the “S00_AXI” port of the “axi_interconnect_2”.zynq_pcie_root_port_design_vivado_38

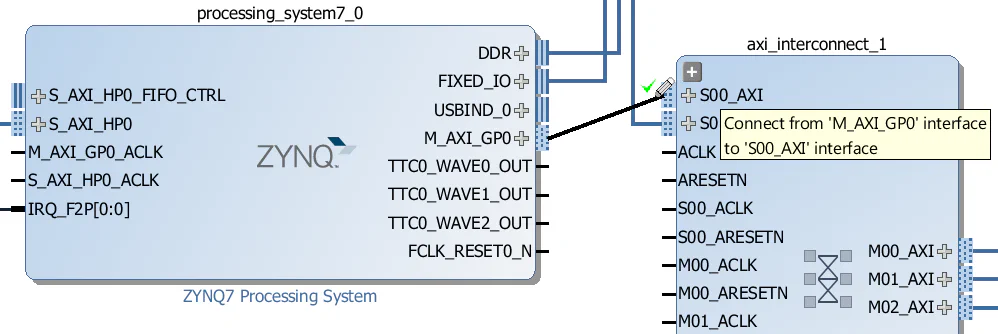

  2. Connect the “M_AXI_GP0” port of the Zynq PS to the “S00_AXI” port of the “axi_interconnect_1”.zynq_pcie_root_port_design_vivado_39

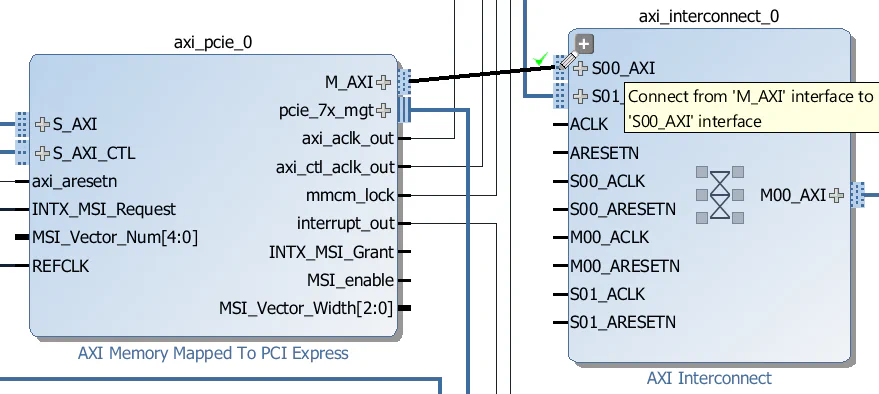

  3. Connect the “M_AXI” port of the AXI-PCIe block to the “S00_AXI” port of the “axi_interconnect_0”.zynq_pcie_root_port_design_vivado_40



Connect all the clocks

Let’s start by hooking up the main clock axi_aclk_out:

  1. Connect “axi_aclk_out” clock to the “M_AXI_GP0_ACLK” and “S_AXI_HP0_ACLK” inputs of the Zynq PS.
  2. Connect “axi_aclk_out” clock to the “m_axi_aclk” and “s_axi_lite_aclk” inputs of the CDMA.
  3. Connect “axi_aclk_out” clock to the “ACLK”, “S00_ACLK”, “M00_ACLK” and “S01_ACLK” inputs of the “axi_interconnect_0” (ie. all of the clock inputs).
  4. Connect “axi_aclk_out” clock to the “ACLK”, “S00_ACLK”, “M00_ACLK”, “S01_ACLK” and “M02_ACLK” inputs of the “axi_interconnect_1” (notice that we do not connect “M01_ACLK” yet!).
  5. Connect “axi_aclk_out” clock to the “ACLK”, “S00_ACLK”, “M00_ACLK” and “M01_ACLK” inputs of the “axi_interconnect_2” (ie. all of the clock inputs).

Now the control clock axi_ctl_aclk_out:

  1. Connect “axi_ctl_aclk_out” clock to the “M01_ACLK” input of the “axi_interconnect_1”.



Connect all the resets

  1. Connect the “interconnect_aresetn” output of the “proc_sys_reset_1” Processor System Reset to the “ARESETN” input of ALL 3 AXI Interconnects.
  2. Connect the “peripheral_aresetn” output of the “proc_sys_reset_1” Processor System Reset to the following inputs:
    • CDMA input “s_axi_lite_aresetn”
    • “axi_interconnect_0” inputs “S00_ARESETN”, “M00_ARESETN” and “S01_ARESETN”
    • “axi_interconnect_1” inputs “S00_ARESETN”, “M00_ARESETN”, “S01_ARESETN” and “M02_ARESETN” (notice that we do not connect “M01_ARESETN” yet!)
    • “axi_interconnect_2” inputs “S00_ARESETN”, “M00_ARESETN” and “M01_ARESETN”
  3. Connect the “peripheral_aresetn” output of the “proc_sys_reset_0” Processor System Reset to the “M01_ARESETN” of “axi_interconnect_1”.



Assign addresses

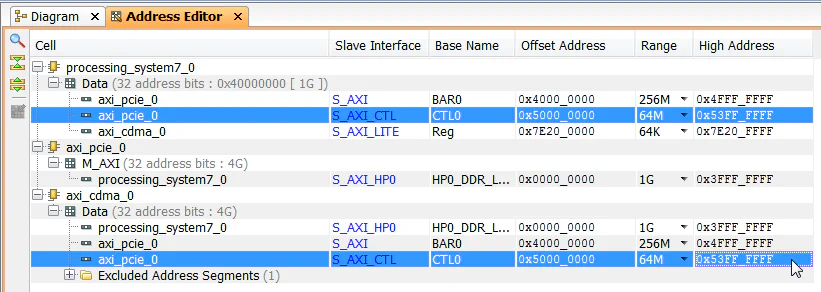

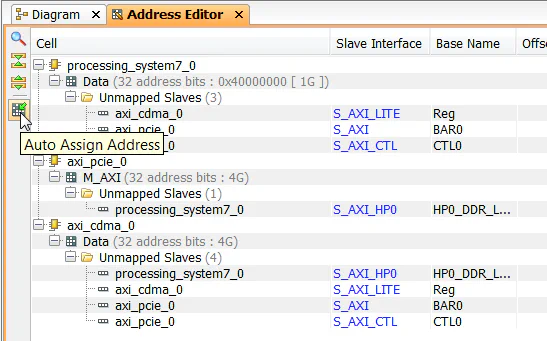

  1. Open the “Address Editor” tab and click the “Auto Assign Address” button.zynq_pcie_root_port_design_vivado_41
  2. There will be an error generated because Vivado will try to assign 1G to the PCIe BAR0 and 256M to the PCIe control interface (CTL0). Change the size of PCIe BAR0 to 256M and use the “Auto Assign Address” button again. It should succeed this time and you will have the addresses shown below.zynq_pcie_root_port_design_vivado_42

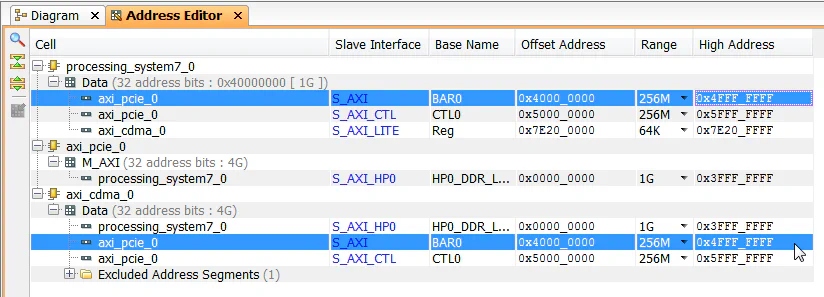

  3. Finally, we’ll need to set the size of the PCIe control interface to 64M, to avoid a memory allocation problem in PetaLinux later.zynq_pcie_root_port_design_vivado_43



Create the HDL wrapper

Now the block diagram is complete, so we can save it and create a HDL wrapper for it.

  1. Open the “Sources” tab from the Block Design window.

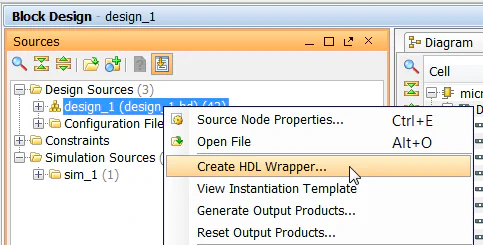

  2. Right-click on “design_1” and select “Create HDL wrapper” from the drop-down menu.microblaze_pcie_root_complex_vivado_85

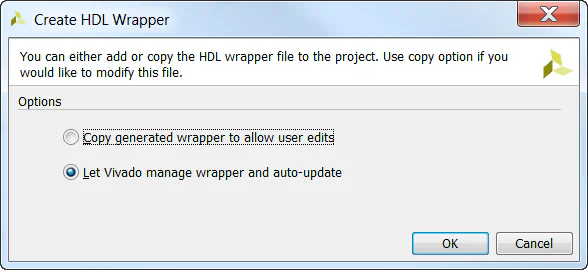

  3. From the “Create HDL wrapper” window, select “Let Vivado manage wrapper and auto-update”. Click “OK”.microblaze_pcie_root_complex_vivado_86



Add the constraints

We must now add our constraints to the design for assignment of the PCIe integrated block, the gigabit transceivers, the reference clocks and a few other signals.

  1. Download the constraints file from this link: Constraints for Zynq PCIe Root Complex design
  2. Save the constraints file somewhere on your hard disk.

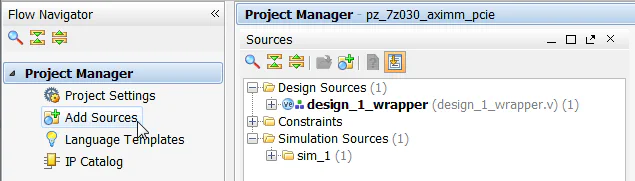

  3. From the Project Manager, click “Add Sources”.zynq_pcie_root_port_design_vivado_44

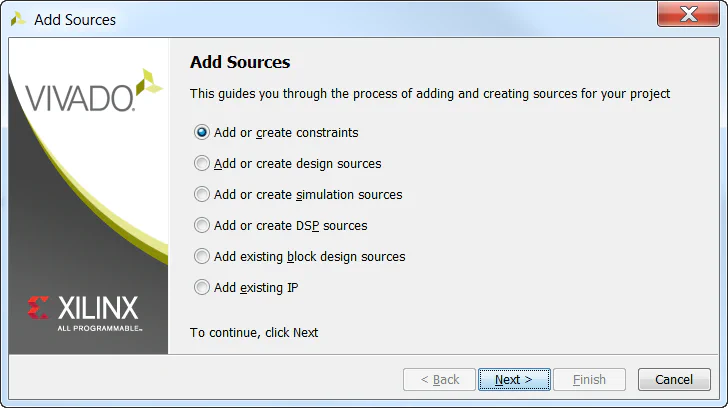

  4. Then click “Add or create constraints”.zynq_pcie_root_port_design_vivado_45

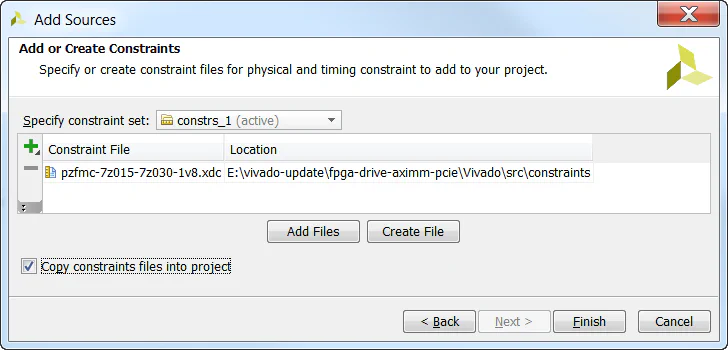

  5. Then click “Add files” and browse to the constraints file that you downloaded earlier. Select the constraints file, then click “OK”. Now tick “Copy constraints files into project” and click “Finish”.zynq_pcie_root_port_design_vivado_46

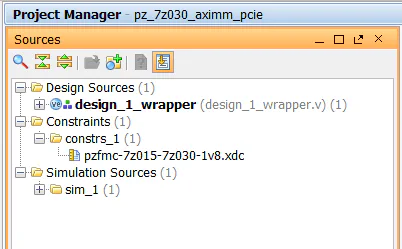

  6. You should now see the constraints file in the Sources window.zynq_pcie_root_port_design_vivado_47

You’re all done!



Testing the project on hardware

In the next and final part of this tutorial series, we will test our design on hardware by connecting an NVMe PCIe SSD to our FPGA. We’ll start by running a simple stand-alone application that will check the PCIe bus status and enumerate the end-points. Then we’ll generate a PetaLinux build that is customized to our hardware and we’ll bring up the SSD from the command line.



Sources Git repository

The sources for re-generating this project automatically can be found on Github here: FPGA Drive PCIe Root Complex design



Other useful resources

Here are some other useful resources for creating PCI Express designs:

If you have any questions about this tutorial, or if you run into problems, please leave me a comment below.
